Raceline

Injector

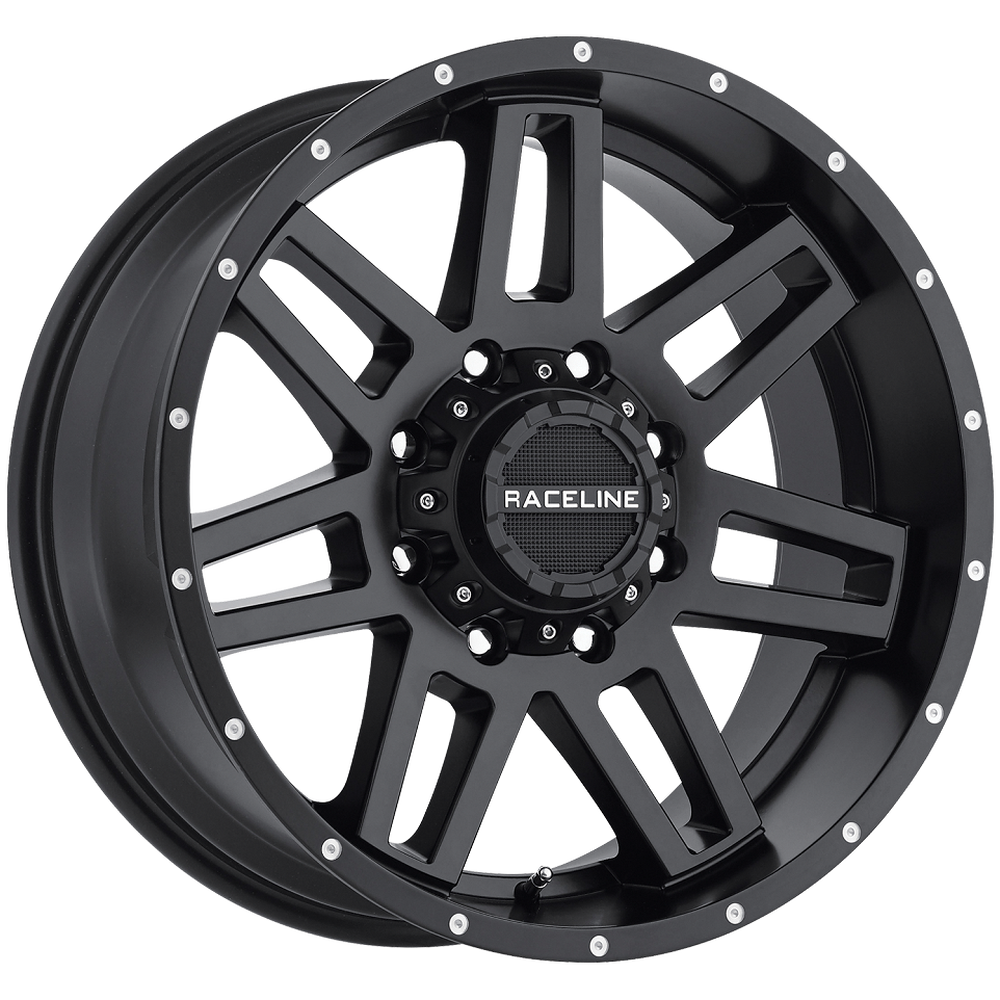

Main Product Image Zoomed InjectorInjector, , hi-res

Actual product bolt pattern and offset may vary from image.

Raceline

Injector

  • Finish: Satin Black
  • Size: 20.0x9
  • Bolt Pattern: 6-5.5/6-135
  • Offset: +20
  • Warranty: 1-Year Limited Warranty
To find pricing and wheels that fit your vehicle tell us what you're driving:
Search Wheel by Vehicle
Search Wheel by Size

Injector

Satin Black

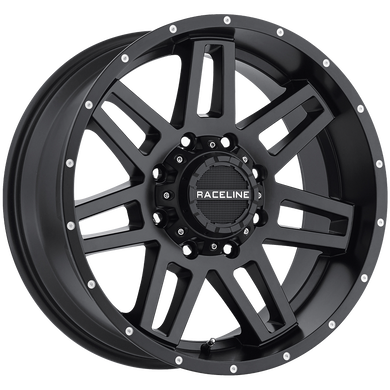

The Raceline Injector is an aluminum wheel available in rim sizes 16 to 20. It comes with a satin black finish. The Injector is designed for the light truck market.

Diameter:
20.0
Offset:
+20
Width:
9
Material:
Aluminum
Bolt Pattern :
6-5.5/6-135
Center Bore Measurement:
106.1
SKU:
590715

Injector

Size Bolt Pattern Offset Backspace (in.) Max Load Capacity Finish
16x8 5-5/5-5.5 0 4.50" 2500 Satin Black
16x8 5-4.5/5-5 0 4.50" 2500 Satin Black
16x8 8-6.5 0 4.50" 3500 Satin Black
16x8 6-5.5 0 4.50" 2500 Satin Black
16x8 8-170 0 4.50" 3500 Satin Black
17x8.5 6-5.5/6-135 18 5.45" 2200 Satin Black
17x8.5 5-4.5/5-5 18 5.45" 2200 Satin Black
17x8.5 6-5.5/6-120 18 5.45" 2200 Satin Black
17x9 8-170 0 5.00" 3500 Satin Black
17x9 5-4.5/5-5 -12 4.50" 2500 Satin Black
17x9 5-5/5-5.5 0 5.00" 2500 Satin Black
17x9 6-5.5/6-135 -12 4.50" 2500 Satin Black
17x9 5-5/5-135 0 5.00" 2500 Satin Black
17x9 8-6.5 0 5.00" 3500 Satin Black
17x9 6-5.5/6-135 -12 5.00" 2500 Satin Black
18x9 5-5/5-135 18 5.70" 2500 Satin Black
18x9 8-170 18 5.70" 3650 Satin Black
18x9 5-150/5-5.5 18 5.70" 2500 Satin Black
18x9 6-5.5/6-135 18 5.70" 2500 Satin Black
18x9 6-5.5/6-135 -12 4.50" 2500 Satin Black
18x9 8-6.5 18 5.70" 3650 Satin Black
18x9 5-4.5/5-5 -12 4.50" 2500 Satin Black
18x9 8-180 18 5.70" 3650 Satin Black
20x9 8-170 12 5.50" 3650 Satin Black
20x9 8-180 12 5.50" 3650 Satin Black
20x9 5-150/5-5.5 20 5.80" 2500 Satin Black
20x9 8-6.5 12 5.50" 3650 Satin Black
20x9 5-4.5/5-5 0 5.00" 2500 Satin Black
20x9 6-5.5/6-135 20 5.80" 2500 Satin Black
20x9 6-5.5/6-135 20 5.00" 2500 Satin Black
20x12 8-6.5 -44 4.75" 3650 Satin Black
20x12 6-5.5/6-135 -44 4.75" 2500 Satin Black
our best Wheels value promise

Free Services Over the Lifetime of Your Wheels

Check out all the free services we offer with every wheel purchase.

  • Guaranteed WorkmanshipFREE
  • Rebalancing FREE
  • Retorquing FREE
  • Safety Inspections FREE
Installed Price
Installed Price Single Wheel Set of 4 Wheels
Injector Wheel (20x9) $355.99 $1,423.96
Valve Stem / TPMS Rebuild Service+ $8.99 $35.96
Lug Wheel Installation Package $95.00
Applicable Federal, State and Local Taxes and Feesยง $24.10 $96.40
Total*** $389.08 $1,651.32
